P2 P2.5 P3 P4 SMD Indoor Flexible Soft LED Display Module Curve Creative LED Screens

• Overview
• Product Description

Overview

Basic Info.

Model NO.	P3 Indoor led display
Pixel Pitch	3mm
Pixel Configuration	1R,1G,1B
Pixel Density	111111 Dots/M2
Scanning Mode	1/32
System Operating Platform	Windows7/8/10
Display Type	LED Video Display
Application	Stage Performance, Advertising, Shopping Guide
IP Rating	IP43
Certification	CE, RoHS, CCC, ISO9001
Product Name	P3 LED Soft Module
Driver IC	High Refresh IC
Bightness CD/Sqm	1000CD/M2
Grey Scale	65536 Degree
Life Time	More 100, 000 Hours (80%)
Mtbf	More 50, 000 Hours
Operating Temperature	-30~+80t
Humidity	10%-95%
Refresh Rate	3840Hz
Transport Package	Wooden Case Flight Case and Carton
Specification	240*120 mm
Trademark	hongking
Origin	Shenzhen China
HS Code	8528591090
Production Capacity	5000 Sqm/Year

Product Description

P2 P2.5 P3 P4 SMD Indoor Flexible Soft LED Display Module Curve creative LED screens

Why Choose LED Display:
A. High brightness: rich and colorful, the only large display device that can be used outdoors all day long;
B. Long life: up to 100,000 hours (ten years) or more;
C. Large viewing angle: greater than 160 degrees;
D. Modular structure: the screen area can be adjusted by specific requirement. It can be as small as one square meter, and also as large as several hundred or thousands of square meters;
E. Easy to be compatible with computer interface, rich support software , easy and flexible
operation, clear and stable picture presentation.
F. Display network: One computer can simultaneously control multiple displays to play
different content. And the display can also work offline. Furthermore, it can display both
text and graphic images, the fonts are richly varied as well.

Product descripition: Product Description

Technical Specifications
NO	Product name	Indoor P3 LED soft module
1	Pixel Pitch(mm)	3mm
2	Pixel configuration	1R1G1B
3	Pixel density	111111 dots/m2
4	Brightness	1000CD/m2
5	Module size(W*H)	240mm *120mm
6	Module Resolution (W*H)	80dots X 40dots
7	Module weight	300g
9	Drive IC	High refresh IC
10	Drive mode	1/30scan
11	Viewing Angle(V/H)	160ºC
12	Grey Scale	65536 degree
13	Life time	>100, 000 Hours (50%)
14	MTBF	>50, 000 Hours
15	Operating Voltage	AC110V/220V±10%
17	Screen Power Consumption	Average: 220W/m2
19	Operating temperature	-30-+80ºC
21	Refresh Rate	3840Hz
22	Control Method	Synchronized with computer monitor
24	LED control system	LINSN, Nova-star,

Application

1.we have indoor fixed installation /rental/small pixel pitch/outdoor advertising/front service /soft/transparent led display,etc. 2.we can customize the product according to customers' needs, you just need to provide the requirements details and also specify the lamp bead brand, ic brand. 3.Installation:diversified installation and high protection level .in addition ,we have processional technicalengineer provide remote assistance 4.Quality Assurance: using Nationstar, Kinglight gold and Copper Wire,big size rgb chips, long service life, low failure rate; 5.Application:shopping mall, large building glass wall, stage background led display, casino, carnival, concert, exhibition, chain shops and clothes shop, even in bnak window, etc.

1) Certification : EMC FCC ROHS CE PCE ISO certification.

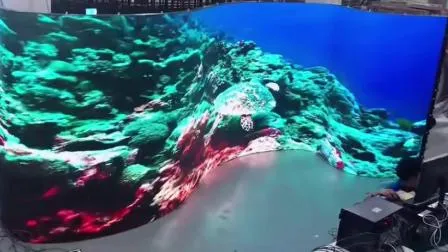

Flexible LED Screen can be designed for special-shaped occasions, such as cylinder, wave, bend and more creative solutions, more flexible. We can also make matched cabinet if needed

Our Production Process :

Every step of the production we following the serious quality check , from material check - PCB printer - Led lamp SMT- Waving soldering machine - Test - aging test every step have professional person to following 6S Quality check .Modules aging test 72 hours , Whole Led display screen aging test 72 hours , delivery goods before double check

Payment term: T/T , usually 30~50% down payment before production,balance to be paid before delivery Delivery time:Production lead time less 20 sqm is about 8-12 working days, more than 50 sqm. is about 15 working days Free sample or not: Sample is available,but need to pay the material cost and freight cost Shipping port: Shenzhen, Mainland China MOQ: 2 sqm for led screen,and10pcs for led module Guarantee:Two years quality guarantee,after two years,we will ask for material cost only,customer pay freight cost

Our Services

Hongking has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.

In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.

Our project show:

Company descripition:

Hongkingled company was established in 2013 .HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 10 years, we have made steady progress. Ingenuity and perseverance have firmly established us as front runners in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully certified by ISO standards.

packing :

FAQ Q1:Are you a manufacturer or trading company? A1:We are a Professional OEM/ODM manufacturer which has specialized in led display industry for ten years. Q2:How does your factory do regarding quality control? A2:Quality is priority.Our company always attach great importance to quality controlling from the very beginning to the very end.We focus on every detail,Our factory has gained CE, ROHS ,FCC,IP65 authentication. Q3:What is your MOQ? A3:Any quantity is acceptable for your order. And the price is negotiable for large quantity. Q4:When will you make the delivery? A4:Generally, we can make the delivery within 10 working days according to the size and quantities of your order. Q5:What technical supports can you offer? A5:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. Q6:How long is the warranty? A6:The standard warranty is 2 year. It could be longer upon request. Q7:Do you provide any free spare parts in each order? A7:Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
