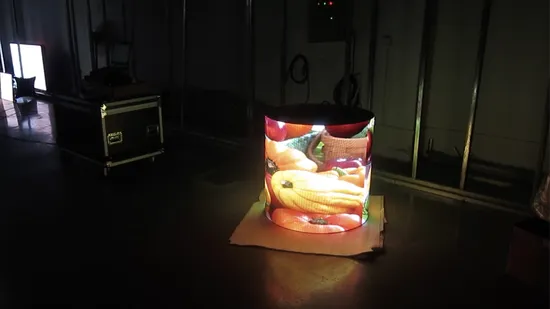

Indoor P3 Creative Video Wall LED Mesh Flexible Display Panel Screen

• Overview
• Product Description
• Detailed Photos
• Material Quality Level
• Technical Specification
• Installation Methods
• About US & Certificates
• Work Shop
• Packing Information

Overview

Basic Info.

Model NO.	FXS-P3
Pixel Pitch	3mm
Pixel Configuration	1R,1G,1B
Pixel Density	111111 Dots/M2
Scanning Mode	1/16 Scan
System Operating Platform	Windows
Display Type	LED Video Display
Application	Stage Performance, Advertising, Shopping Guide
IP Rating	IP31
Certification	CE, RoHS, CCC, ETL
Cabinet	Aluminium
Brightness	600-800nits
Refresh Rate	3840Hz
Viewing Distance	3m
Contrast Rate	3000:1
Voltage	AC220-240V
LED Lamps	SMD 3 in 1
Driver IC	Constent Current
PSU	5V 60A
Service Solution	Front Service
System	Nova
Software OS	Windows
Transport Package	Plywood Cases
Specification	240x120mm
Trademark	LEDventure
Origin	China
HS Code	8528591090
Production Capacity	2000sqm/Month

Product Description

FXS Service (Flexible LED module) improved from traditional flexible strip.combine with traditional led module,with flexible beauty,wide viewing angle design.module size available 320x160mm,256x128mm,240x120mm,at the same time.Flexible LED modules can be accembled into different curved display screens.according to insralltion requirements,including pillar screens,spherical design and many other multi-curved shapes.

Indoor led advertising curved display screen is very hot sale for indoor media solution series,
- very cost effective,
- high refresh rate more than 3840hz ,
- also light weight design cabinet for options,
- image quality is top, running stable,
- resolution is high density,
- plus simple installation to make this series more and more popular in indoor outdoor media curve screens

All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.

Installation methods, indoor front service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.

By plywood cases, packing well and easy to load.

FAQ

Q1: Can I get a sample before official order?
A: Sample orders are available for quality check and market test.

Q2: What is your payment method?
A: Our usually practice for payment is by T/T for the mass order. At least 30-50 % deposit in advance, and the balance should be paid before delivery.

Q3: What is your shipping and packing way?
A: We do plywood case or flight case as per customers' requests. For the mass order ( fit for a container), we do shipment by Sea and for others usually by express or airline.

Q4: Can we make any size of led display?
A: Nope, according the led module size or cabinet size.

Q5: How to install led display?
A: We will provide drawing of steel structure or hanging truss according to your requirements, you can install the led display according to the installation guide.

Q6: Is Available to print customer required logo on your LED product?
A: Surely it is. Please inform and confirm the logo design details with our team ahead of the production. Then, we will follow your requirements.

Indoor P3 Creative Video Wall Led Mesh Flexible Display Panel Screen We focus on all kinds of led display screen manufacturing included indoor outdoor led display, rental led display, flexible led display, transparent led display, dance floor led series, HD resolution led display, perimeter led display, stadium sport led display screen, led sign, led display board and led billboard. Product Description

Pixel Pitch	1.25mm 1.58mm 1.67mm 1.8mm 2mm 2.5mm 3mm 4mm
Brightness	600-800nits
Module Size	240x120mm256x128mm 320x160mm
Max. Power Consumption	20W/pcs
LED Brand	SMD 3 in 1
Driver IC	Constent Current
PSU	5V 60A
Refresh Rate	3840 HZ

Detailed Photos

Material Quality Level Technical Specification

Item	Indoor P3 Creative Video Wall Led Mesh Flexible Display Panel Screen
Model Number	FXS-P3
Pixel Pitch	3mm
Pixel Density	111111 pixels/M2
Pixel Configuration	1R1G1B
LED Type	SMD 3 in 1
Module Size	240x120mm
Module Resolution	80x40 pixels
Min. Viewing Distance	3m
Brightness	600-800nits
Viewing Angle	≤140°
Average Power Consumption	20W/pcs
Scan Mode	1/16 Scan
Protection Level	IP31
Cabinet Size	/
Color Temperature	The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements
Input Voltage	AC220-240V, 50HZ/60HZ
Refresh Rate	3840hz
Color	65535 Levels
Horizontal/Vertical Viewing Angle	<140°
Gray Scale	16 bits
Effective Communication Distance(without relay)	<100 meters
Lifespan	≥100,000 hours
Environment Temperature	Storage: -40°C~+85°C , Operation: -20 °C~+45°C
Blind Spot Rate	<0.0001(led display industry standard is less than 0.0003)
Control Mode	Video frequency synchronization
